12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

Name: 12 Pin Female and Male DTM Housing Connector DTM0612S DTM0412P
Brand: YBADDVANCE
Price: 1 USD

Wholesale 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P from china suppliers

Brand Name : YBADDVANCE

Model Number : DTM06-12S DTM04-12P

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : DTM06-12S DTM04-12P

Color : Grey

Type : Deutsch connector

Way : 12 hole

Gender : Female and Male

Feature : Waterproof

Martial : PBT/PA66

HS code : 8536909000

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

Description

12 Pin Female and Male DTM Housing Connector

2 Row , 12 way
Configuration : 1 Female connector +1 Male connector
Wire Range : 20-16 Awg
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature Range: -55°C to 105°C

The DTM connector line was developed to fill the need for lower amperage, multi-pin connectors.

Contact insertion and removal does not require any special tools.

Contacts are retained in locked position by dielectric fingers which are moulded as an integral part of the housing.

Wedgelocks are assembled at the mating interfaces to ensure contact positioning.

Specification

Item name	12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P
P/N	DTM06-12S DTM04-12P
Wire Size	20-22AWG
Operating Temperature range	-55℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	12 pin Deutsch Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	12 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

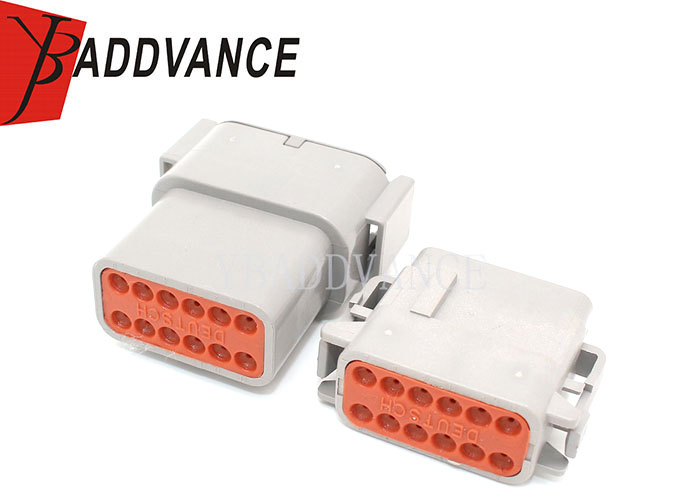

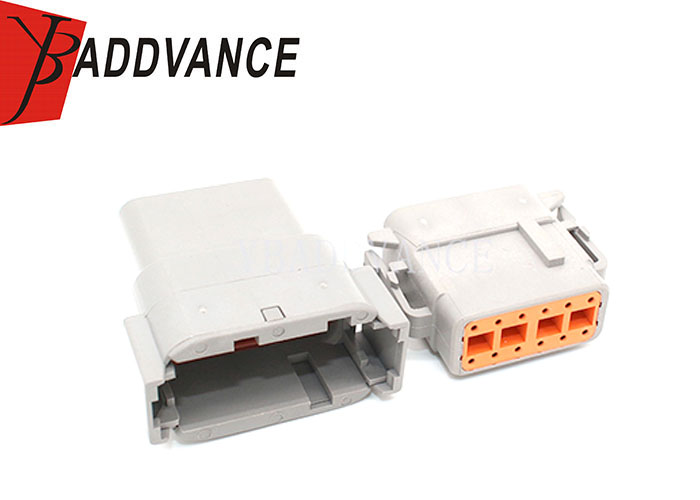

Product Picture Details

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P
